Pfeiffer Alcatel Adixen ACP15 Dry Vacuum Pump Series Semiconductor Vacuum Pump Machine

Pfeiffer Alcatel Adixen A100L Standard Version Dry Multi-Stage Roots Vacuum Pumps A100L41424

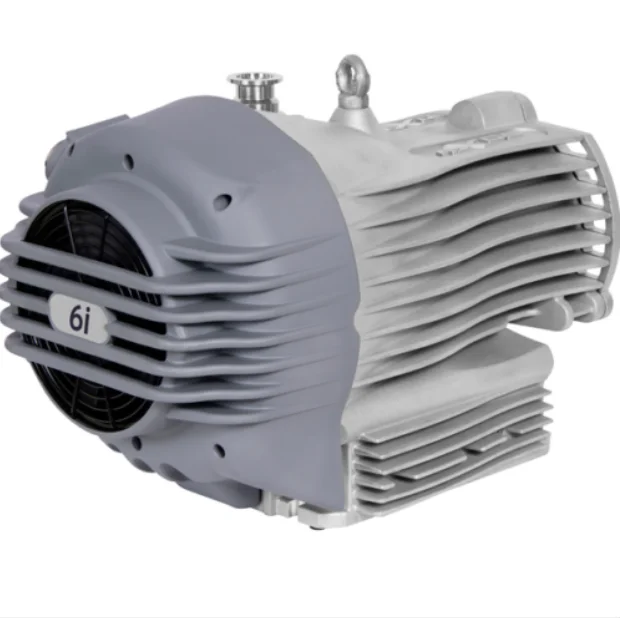

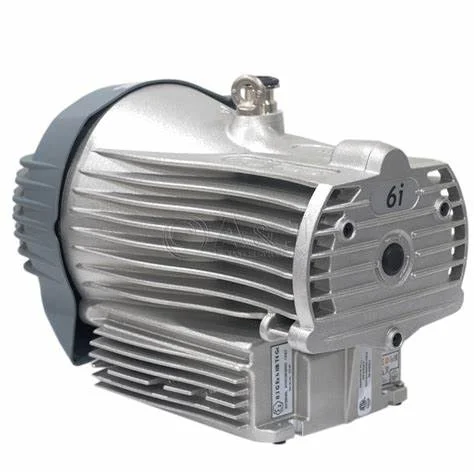

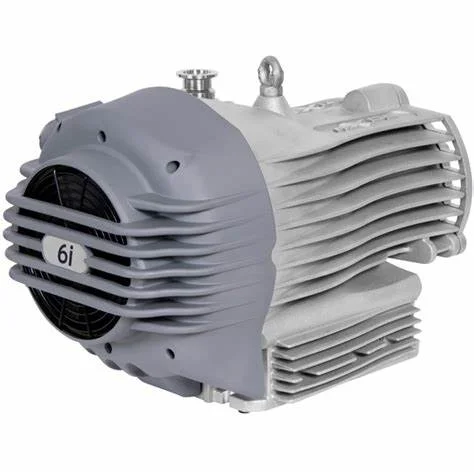

Edwards nXDS6i Oil Free Dry Scroll Pump 1Phase 100-127/200-240V High Performance A73501983

Edwards nXDSi pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDSi series of pumps is the next generation in completely oil free, dry scroll pumps and offer increased pumping speeds, lower ultimate pressures, lower power consumption and lower noise than previous models. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. Edwards nXDSi pumps feature the latest in tip seal technology giving them significantly longer life between tip seal changes (up to five year service intervals), and are designed to be completely field serviceable.

Brand：Edwards

Model：nXDS6i

Minimum：1

zouyi@tech-hover.com

Message

Edwards XDS5 Lubricant-Free Dry Scroll Vacuum Pump Single Phase 115/230V A72401906

Edwards nXDS10i Oil-Free Dry Scroll Vacuum Pumps 1Ph 100-127/200-240V 6.7 CFM A73601983

Product details

Download

Product Overview

Edwards nXDS is the great new shape of dry vacuum pumping.

The nXDS has taken scroll vacuum technology to the next level. Improved performance, exceptional pumping capability, quiet operation and extended service intervals make nXDS the ultimate dry choice. The range covers pumping speeds from 6 to 20 m3/h.

The nXDS6i is our entry performance model in the nXDS range. Standard variant suitable for a large variety of applications; R-variant with blanked gas ballast and C-variant being corrosion resistant.The nXDS6i is our standard product variant which can be operated in a wide range of applications.

FEATURES AT A GLANCE

* General clean pumping applications
* Scanning Electron Microscopes - SEM
* Beam lines and high energy physics
* Mass Spectrometry
* Electron Microscopy
* Sample Preparation
* Research and Development
* High Energy Physics
* Industrial

* Semiconductor

Quiet operation - Better working environment

Hermetically sealed for a lubricant-free vacuum environment - Contamination free process and no oil to dispose of

Low power consumption - Low cost of ownership

Intelligent and easy to use controls - Flexibility of operation

Superior vapour handling - Wider range of applications

Long service intervals - Maximised up-time

* Backing turbo pumps
* Centrifuges, ultra-high speed
* Coating
* Cryogenics
* Degassing/curing - oil, epoxy resin
* Distillation/extraction/filtration
* Laboratory bench top vacuum
* Lasers, gas recovery and recirculation
* Research and development

* Surface science instruments

PRODUCT SPECIFICATIONS

Nominal rotation speed	1,800 rpm
Displacement	6.2 m3h-1 / 3.6 ft3min-1
Peak pumping speed	6.2 m3h-1 / 3.6 ft3min-1
Ultimate vacuum (Total pressure)	0.020 mbar / 0.015 Torr
Minimum standby rotational speed	1,200 rpm
Speed control resolution (percentage of full rotation speed)	1%
Pumping speed at minimum rotational speed	4.1
Max continuous inlet pressure	200 mbar
Motor power 1-phase	260 W
Power connector 1-phase	IEC EN60320 C19
Recommended fuse	10A, 250 VAC rms
Weight	26.2 kg / 58 lb
Inlet flange	NW25
Exhaust flange	NW25
Noise level	52 dB(A)
Vibration at inlet flange	< 4.5 mms-1 (rms)
Leak tightness (static)	< 1 x 10-6 mbar l/s
Operating temperature range	10 to 40°C / 50 to 104°F

PRODUCT CONFIGURATION

Please contact us

SALES AND SERVICE NETWORK

Products Description

This Edwards nXDS6i dry scroll roughing/backing pump has a pumping speed of 3.6 cfm (6.2 m3/hr), and an ultimate vacuum of 0.015 Torr (0.020 mbar). It has KF-25 (NW25) inlet and outlet ports. It requires 100-240 VAC single phase power and has a standard C14 power connector. The nXDS6i draws 10A@120VAC (6A@240 VAC). The nXDS6i scroll pump produces a noise level up to twenty times less than competing products at 52 dB(A). The pump has an onboard inverter controller which allows the pump to be controlled either manually with easy to use push buttons, or remotely via its RS232/RS485 interface when connected to an Edwards TIC or TAG controller, or a user supplied software interface. This Edwards nXDS6i dry scroll pump has part number A73501983. Edwards nXDSi pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDSi series of pumps is the next generation in completely oil free, dry scroll pumps and offer increased pumping speeds, lower ultimate pressures, lower power consumption and lower noise than previous models. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. Edwards nXDSi pumps feature the latest in tip seal technology giving them significantly longer life between tip seal changes (up to five year service intervals), and are designed to be completely field serviceable. The nXDSi integral pump controller monitors power and temperature, and will protect the pump in the event of operation under sustained high load or under fault conditions. The pump controller has a unique feature to control the speed of the pump in standby mode to 70% of full speed or with other push buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life. The logic interface is designed to support RS232/RS485 serial or parallel control and monitoring through the DB15 connector.

FAQ

1. who are we? We are based in Jiangsu, China,have more than ten years of vacuum system experience，There are total about 11-50 people in our office. 2. How can we guarantee quality? Always final Inspection before shipment; 3.what can you buy from us? Sales of various vacuum pumps, turbo pumps&controllers，gauges&controllers，fittings and flanges，rebuild kits，parts&motors 4. why should you buy from us not from other suppliers? The core members of Hongfei technology have more than ten years of experience in vacuum equipment trade, and can provide solutions in vacuum field 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,EXW,FAS； Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T，L/C,D/P,Western Union,MoneyGram,Credit Card Language Spoken:English,Chinese

product information

size

date updated

Edwards nXDS nXR Serial Communications Manual.pdf

1,925.4KB

2025-05-22 15:14:03

download

Edwards nXDS Brochure.pdf

1,490.8KB

2025-05-22 15:14:03

download

Edwards nXDS Scroll Vacuum Pumps Manual.pdf
